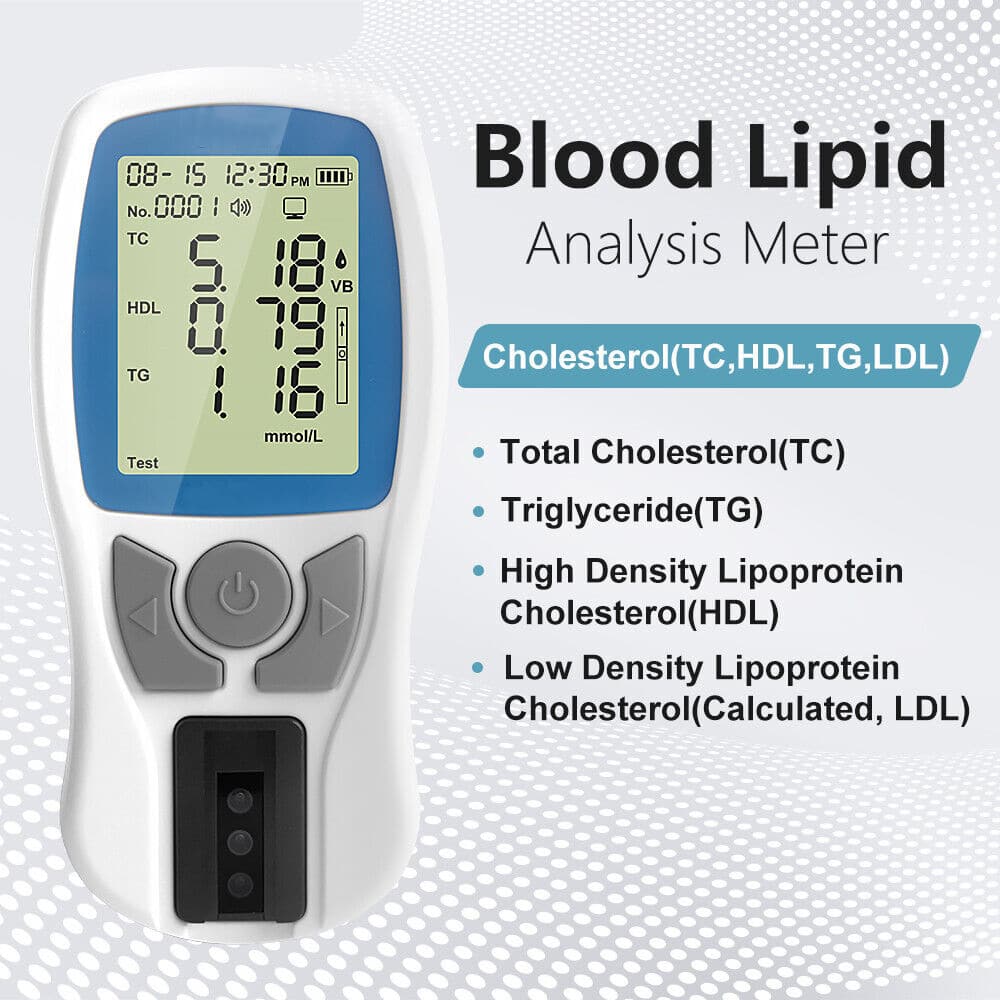

3 in 1 Blood Lipid Meter Cholesterol Meter
The Lipid analysis meter is intended for the quantitative measurement of
Total Cholesterol (TC), High-Density Lipoprotein Cholesterol (HDL), Triglycerides
(TG), and the calculated ratio of TC/HDL and Low-Density Lipoprotein Cholesterol
(LDL) in capillary blood, venous whole blood, plasma, and serum.
The meter can store up to 500 results and records. The meter can be operated by 3*AAA batteries.

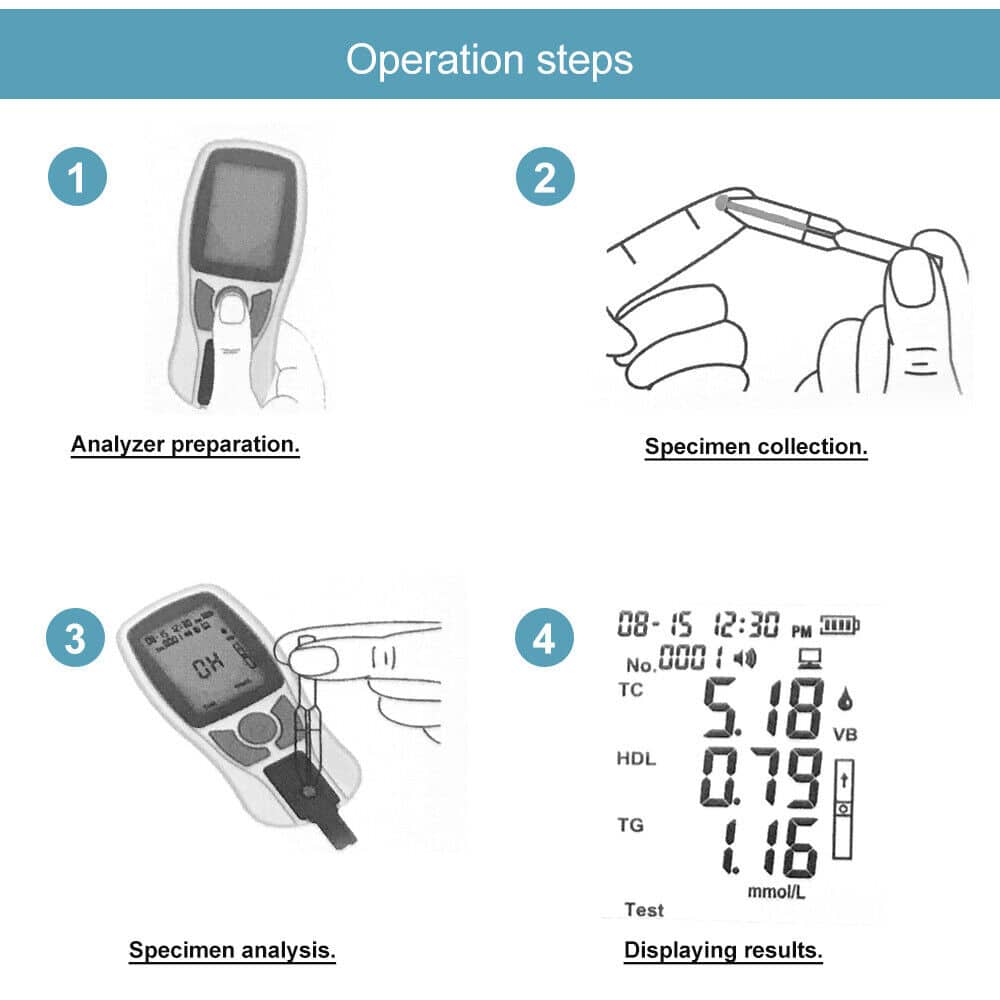

How to Operate the Blood Lipid Meter
Specifications
| Specifications | SLP-102 |
| Methodology | Reflectance Photometry |
| Specimen Type | Whole blood(capillary and venous),plasma and serum |
| Specimen Volume | 10 μL for single test,35 μL for 3 in 1 test |
| Units of Measurement | mg/dL, mmol/L |
| Time to Results | in 2 minutes |
| Measurement Range | TC: 2.59mmol/L-12.93mmol/L(100mg/dL-500mg/dL ) HDL: 0.39mmol/L-2.59mmol/L (15mg/dL-100mg/dL) TG: 0.51mmol/L-7.34mmol/L (45mg/dL-650mg/dL) |
| Memory | 500 records |
| Power Source | 3*AAA Batteries |
| Battery Life | N/A |
| Bluetooth | No |
| Communication | Yes, PC software is available through a Mini USB data cable.
It can connect to an external printer. |
| Meter Size | 135 mm × 66mm × 19 mm |
| Weight | 90g |
| Meter Storage Conditions | 0-55°C;≤90% RH |
| System Operation Conditions | 10-35C;0-90% RH ;height<sea -level2000m |
| Test Strips Storage Conditions | 2-30°C;≤90% RH |
| Shelf Life | Meter:5 years Test Strips:18 months |
| Warranty Period | 2 years |
To Ensure Accurate Results:
• Read instructions carefully and complete any necessary training before use.
• Use the code chip included in each box of test strips.

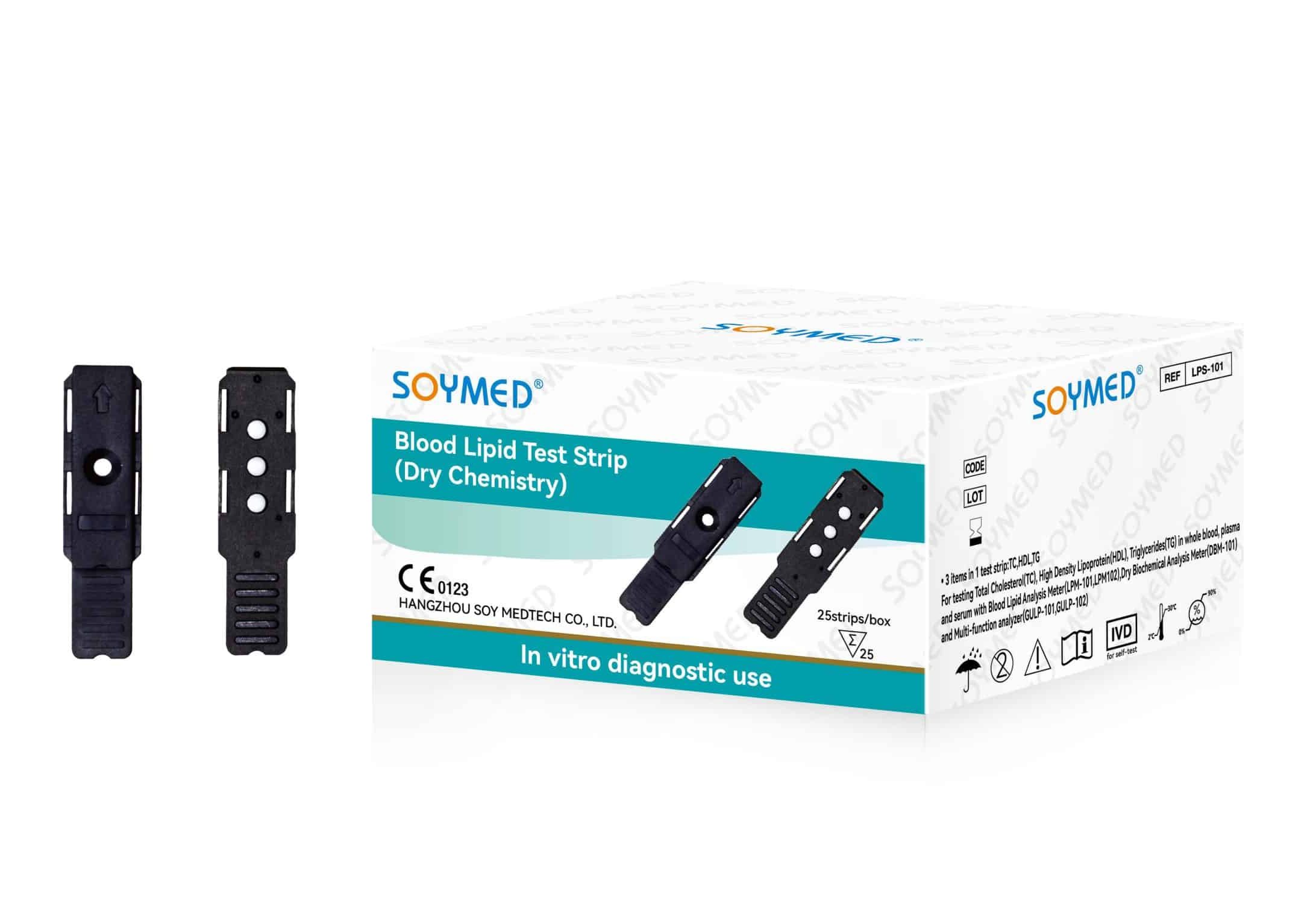

• Only use the Blood Lipid Test strips with the Blood Lipid Meter.
• For in vitro diagnostic use only.
• Keep out of reach of children.
