Dry Chemistry Analyzer Centrifugal microfluidic biochemical POCT test platform

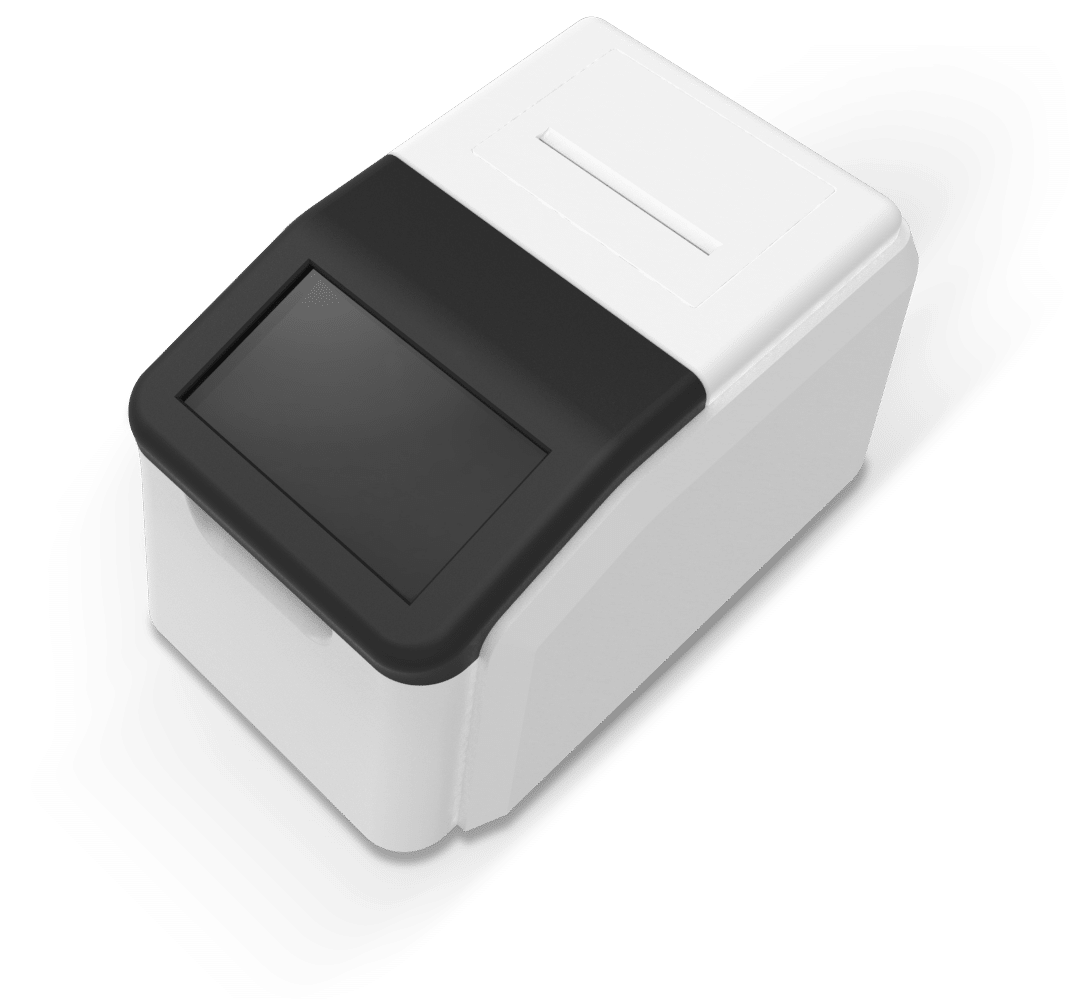

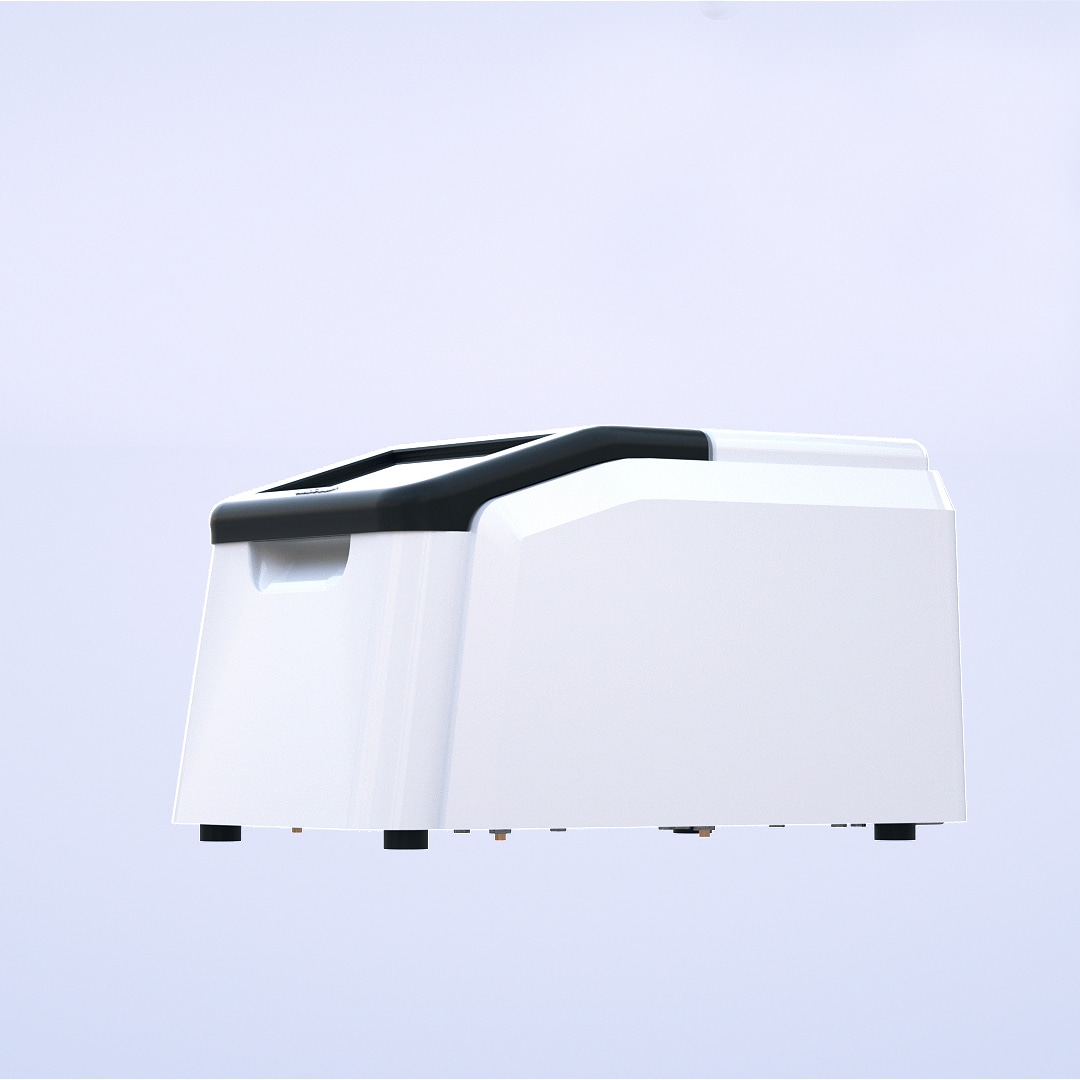

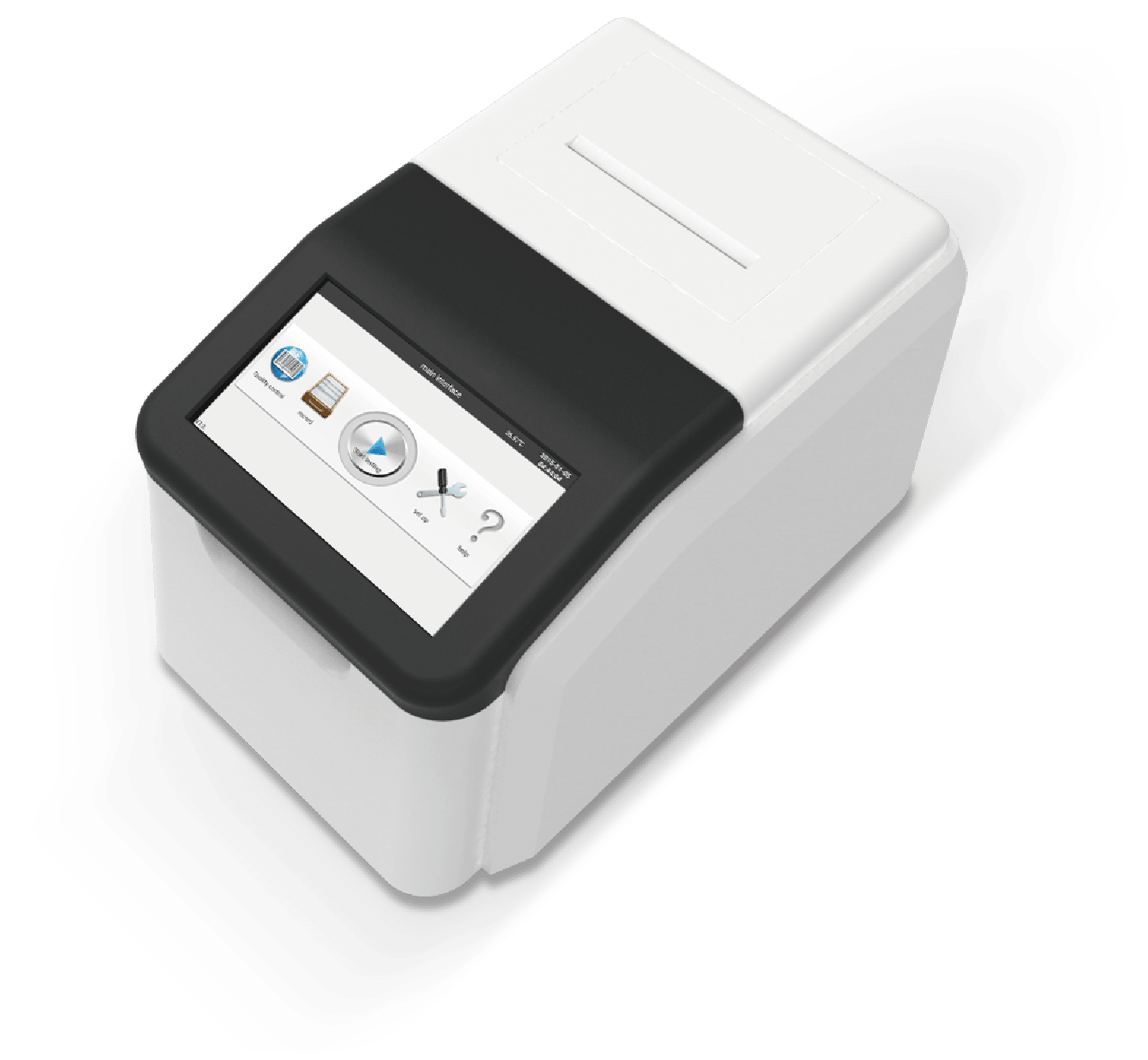

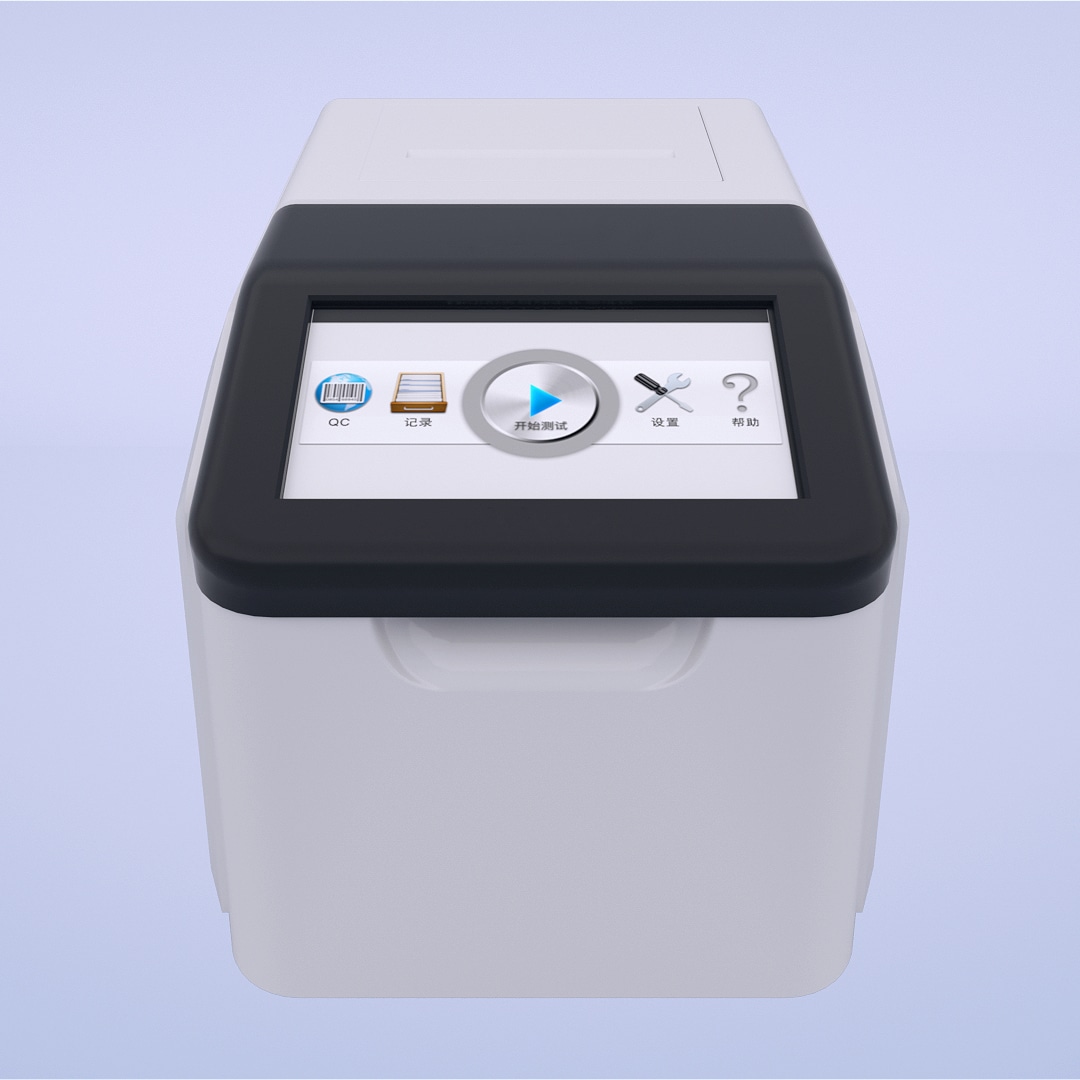

Dry Chemistry Analyzer MS100 is used for the quantitative analysis of analytes in human samples. This instrument is suitable for laboratories with professional testing capabilities in medical institutions, such as central laboratories, outpatient and emergency laboratories, clinical departments, physical examination centers, etc. For in vitro diagnostic use only.
Main features
1. Whole blood sampling
It is commonly used in point-of-care testing and emergencies where quick results are required.
2. Internal centrifuge
This saves time and reduces the risk of sample contamination.
3. Free combination of lyophilized discs
The lyophilized discs have a flexible combination method, which can be freely combined according to actual needs and research purposes.
4. Instrument miniaturization, lyophilized reagent pre-packaged design
Efficient use of reagents, minimizing waste, and reducing overall testing costs
Easy to ship and valid for 12 months
5. Fast, accurate, and portable
The analyzer was designed to be portable and have a small footprint, ensuring that it can be used anywhere at any time.
Advantages
- Free choice of multiple lyophilized discs, application of personalized medicine
- Instrument miniaturization, lyophilized reagent pre-packaged design
- Fast, accurate, and portable
Specifications
| Sample type | Anticoagulant whole blood, plasma, serum, capillary blood |
| Test principle | Photoelectric colorimetry |
| Connection | On-line of LIS system |
| Sample volume | 140μL |
| Test time | ≦15min |
| Code identification | Automatic identification of QR code for reagent disc |
| Reagent type | Lyophilized reagent |
| Light source | LED lamp |
| Printer | Built-in thermal printer and external printer (wireless printer driver) |
| Operating system | Android 5.1 (5-inch) |
| Memory capacity | 1GB, with expandable 32GB TF card |
| Supply voltage | AC 100V-240V, 50-60HZ |
| Size | 270mm*180mm*155mm |
| Weight | 3KG, with built-in adapter |
