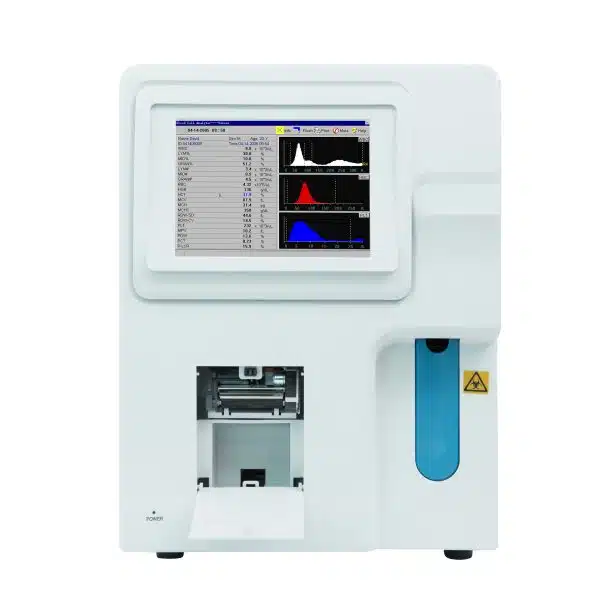

The 3-Part Automated CBC Machine Hematology Analyzer
Features:
- 3-part differentiation of WBC, 23 parameters, up to 35 samples tested per hour
- Electrical resistance for counting and SFT method of Hemaglobin
- Low sample consumption: venous 9.8 ul, prediluted 20 ul for twice testing one time

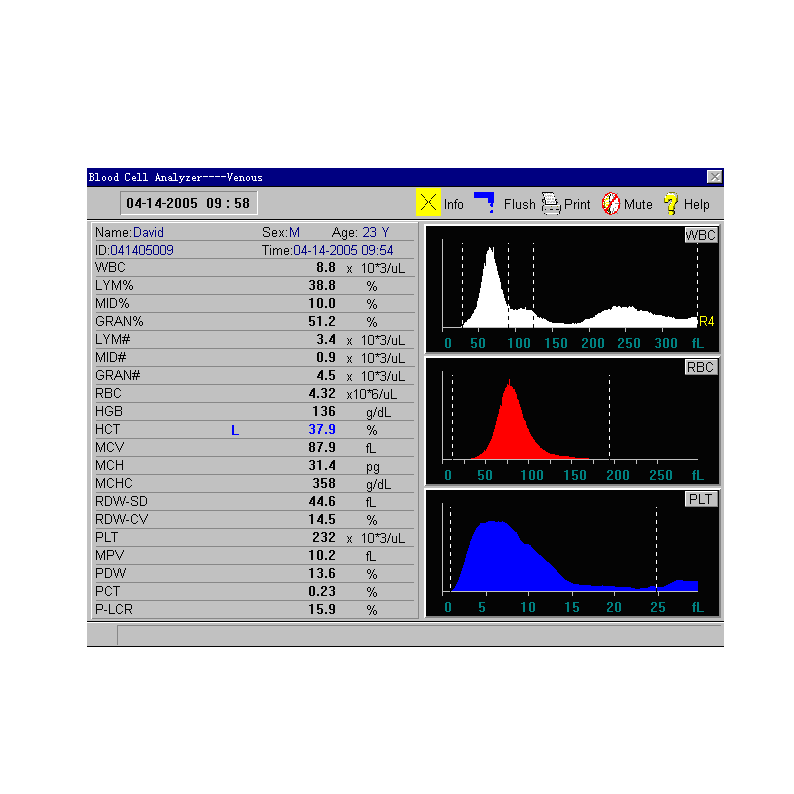

- 8.4” color TFT, Windows interface all testing parameters displayed simultaneously
- Windows operation system graphical buttons mouse and keyboard operation
- Automatic diluting, Mixing, rinsing and clog clearing
- Automatically sample probe cleaning (inside and outside)
- Large storage capacity: up to 10,000 samples +3 histograms
- Internal thermal-sensitive printer or external printer
- RS232 interface, PC connecting
Specifications:
| Main Technical Specifications | Methodology Electrical resistance for counting, hemoglobin cyanide method, and SFT method for hemoglobin |
| Parameter | 3-part differentiation of WBC, 20 parameters, and 3 color histograms (WBC, RBC, PLT) |
| Work mode | Single Channel + unique Hemoglobin test system |
| Sample volume | 9.8 μL for Venous and capillary mode. 20 μL for prediluted mode |
| Throughput | More than 35 samples per hour, operatable 24 hours a day, auto sleeping and waking-up functions |
| Storage | Up to 100000 sample results including histograms can be stored, convenient for inquiry and management of historical data |
| Operation language | English |
| QC control | X-B, L-J,X, SD, CV% |
| Reference Value Setting | Male, Female, Children, Neonate |
| Input /output | RS232parallelprinter and kevboard |
| Graphic thermal printer with various printing formats optional external printer | |
| Temperature | 18C-30C,wet10-90% |
| Power supply | 220V±22VAC.50±1Hz |
| Dimension | 33 CM(L)*38 CM(W)*43 CM(H) |
| Weight | 20 KG |
Parameters:
WBC,Lymph#,Mid#,Gran#,Lymph%,Mid%,Gran%,RBC,HGBHCT,MCV,MCH,MCHCRDW-CVRDW-SD,PLT,MPVPDWPCT,L-PCR3 -histograms :WBC,RBC and PLT
