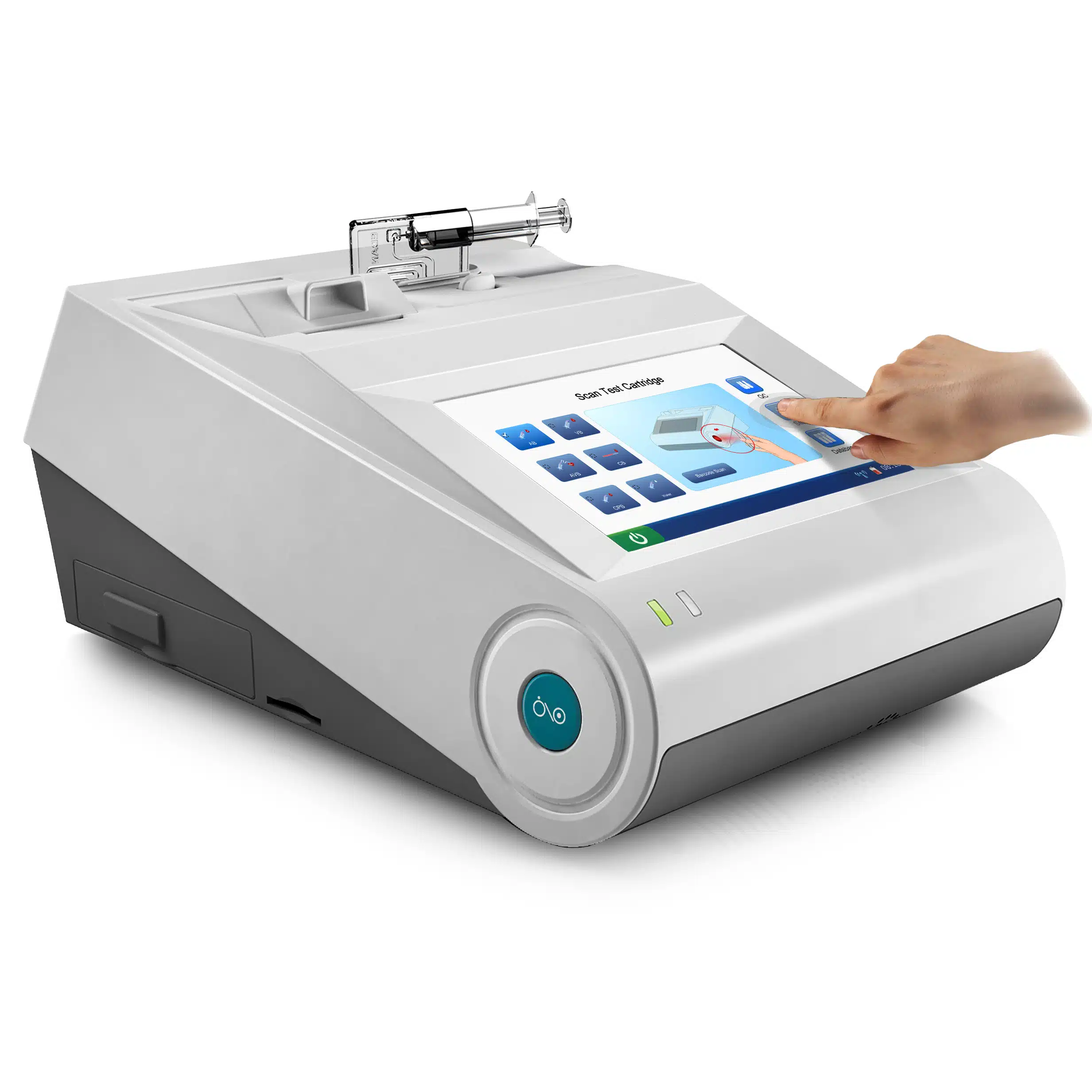

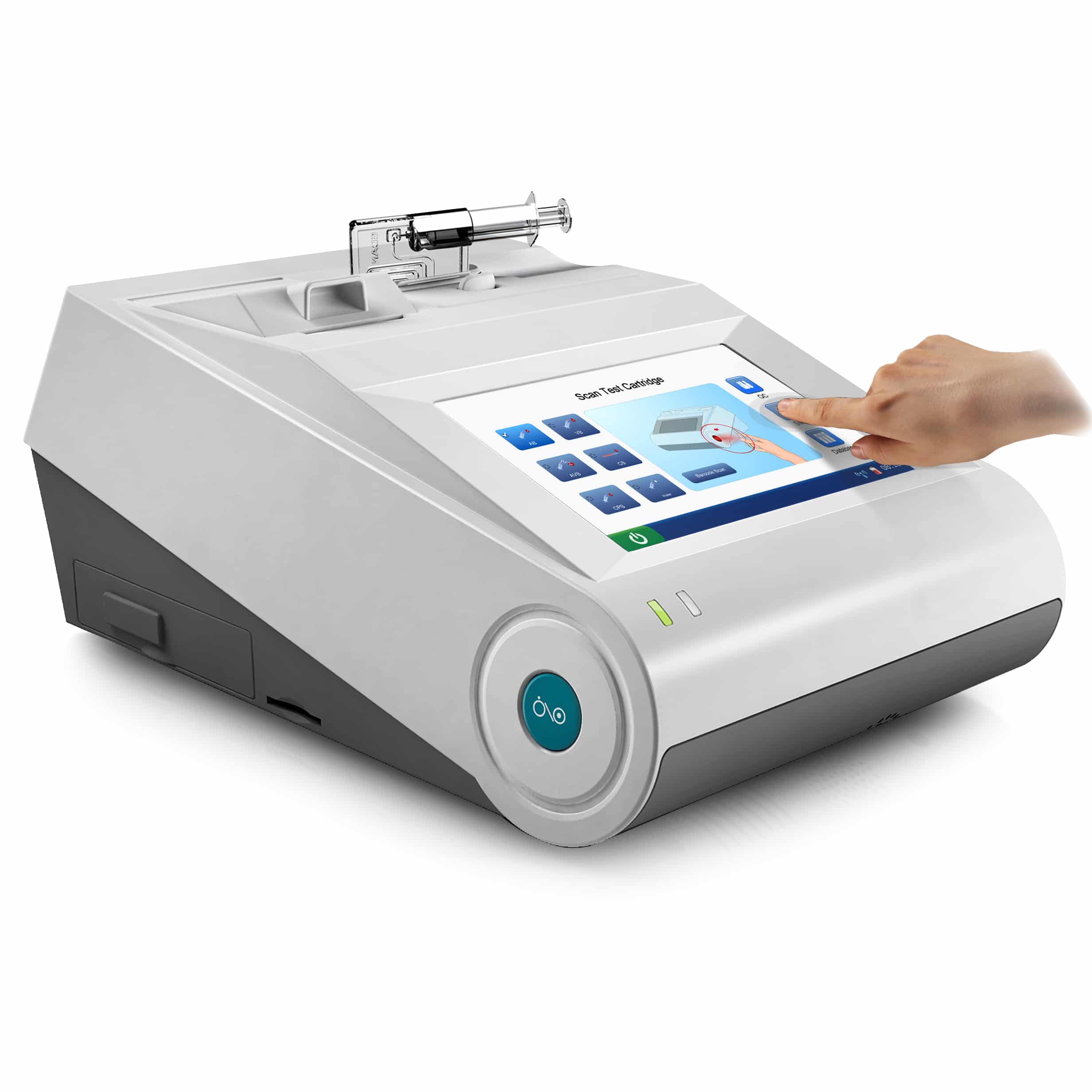

Automatic Blood Gas& Chemistry Analyzer

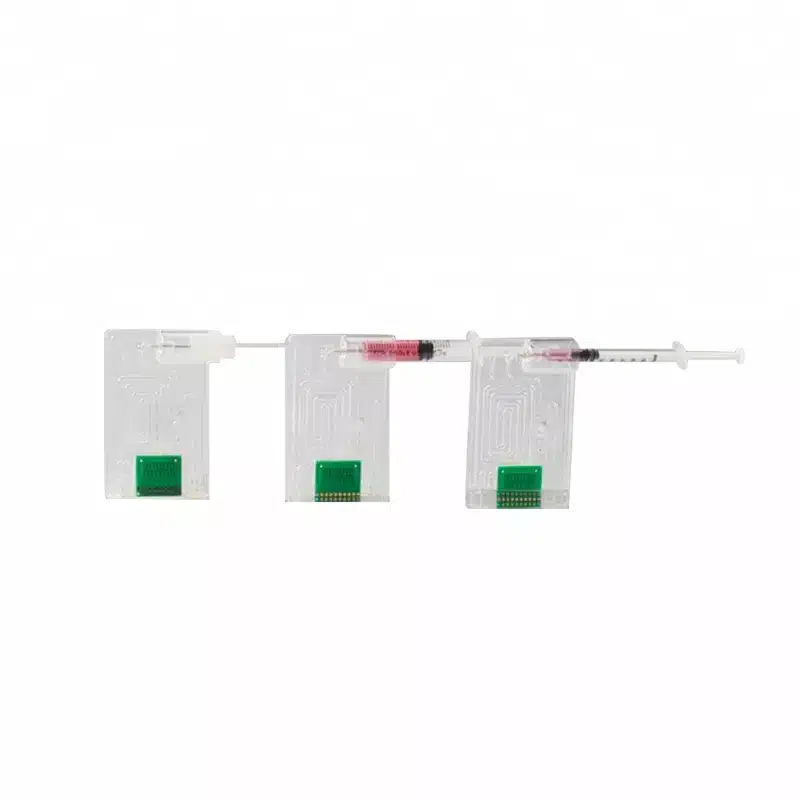

The Edan blood gas analyzer uses a disposable reagent pack with a wash solution, tonometric calibrators, and a waste container. In addition, it does not require a gas cylinder. The unique design of the disposable sensor cards, combined with the reagent module with variable capacity depending on the number of samples per day, ensures economical operation and low cost per sample. Simple menus via a touch screen guide the user through the operation of the analyzer. This new design avoids biohazard and environmental contamination.
Specifications:
- Sample Type: Arterial, venous, or capillary whole blood
- Quality control: 3 or 5 levels QC, External electronic simulator
- Display: 7-inch color LCD Display,800*480
- Sample Volume: 140 uL
- Interface：4 x USB 2.0 host, 1x RS232, WIFI,LAN
- Input device： Touch screen and barcode scanner
- Power supply：100-240VAC，50/60Hz
- Battery：5000mAh rechargeable lithium-ion battery, 50 samples of continuous testing
- Dimensions(WHD)：238*153*310mm
- Battery: 3.7V, 5000mAh
- Operating Temperature:10 – 31 °C / Relative humidity25%-80%;70-109.9KPa
- Printer: Built-in thermal printer
- Weight: 3.65KG
