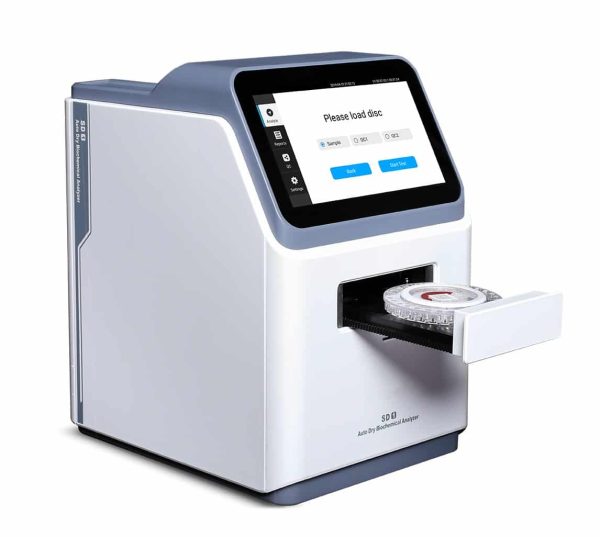

This Fully Automatic Dry Chemistry Analyzer
is designed for the on-site testing. It can provide faster, easier, more accurate medical diagnosis using 0.1cc of whole blood, serum or plasma. With built-in centrifuge, QR code, real-time quality control, can provide faster, easier, more accurate medical diagnosis. The test results will be automatically printed after 12 minutes.
Small sample required: Only 100ul sample needed for a test, comparing to traditional chemistry analyzer, the sample volume is only 1/10.Quick result in 12 minutes
Minimal maintenance: There are no easy-wearing part such as liquid circuit, pump valve., etc. and the single reagent tray is used as a complete set, which is free of cleaning and maintenance.
Easy to use: No pre-processing for sample. It is extremely easy of use which does not require dedicated staff and allows anyone could operate it.
Automated and smart: It is fully automated with features of online fault diagnosis. Upgrading, to help you know the operation of the instrument in real time.
Easy data management: Memory capacity up to 500,000 patient records, through RS-232 port, it can be connected to the LIS laboratory Information system to facilitate customer data management.
Accuracy: Adopt the photoelectric colorimetric principle with built-in real-time quality control system to ensure the accuracy of analysis.
Compact and portable: the analyzer is small and light weight which will save your laboratory space and allow on-site patient testing.

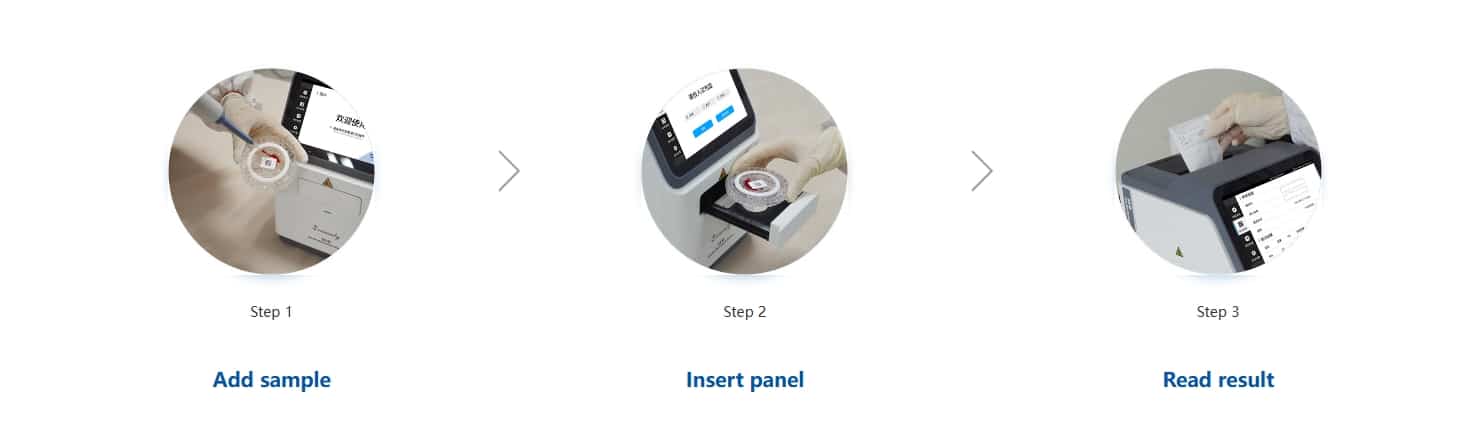

Three Steps for Operation

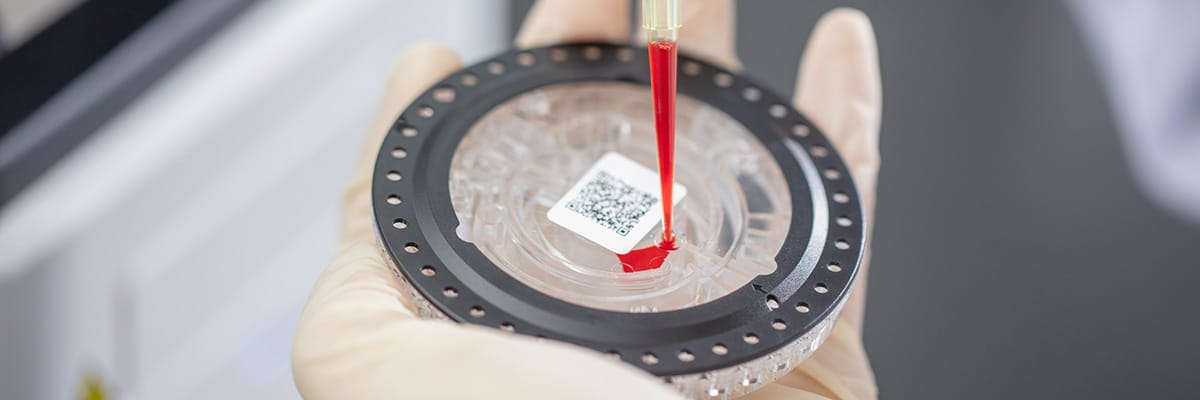

How to operate Dry Chemistry analyzer Reagents Discs
The reagent discs contain lyophilized reagent beads and diluent, individual channel, less cross contamination. Multi-combination of testing parameters, more choices.

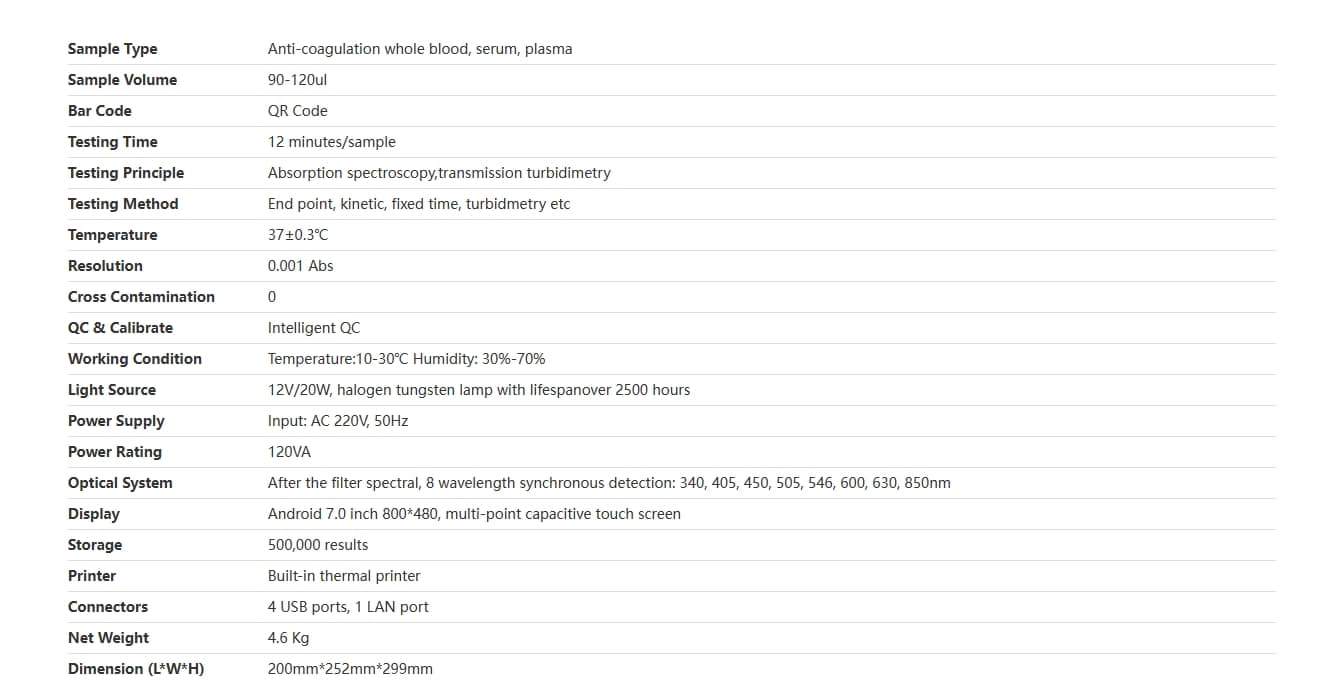

Parameters and Specifications
