The Portable Ultrasound Machine
The Ultrasonic Diagnostic System is a highly portable device that offers a much clearer image, making it very convenient to operate. The Model 580 comes with an extra-long battery life, providing over 8 hours of standby time and 4 hours of working time, making it useful for consultation in various environments such as cities, towns, and outdoors. It offers a variety of charging options to ensure examination consultation under different circumstances.
This device comes with the following features:
– 12.1 inch HD LCD display
– Rechargeable battery
– THI and Histogram function

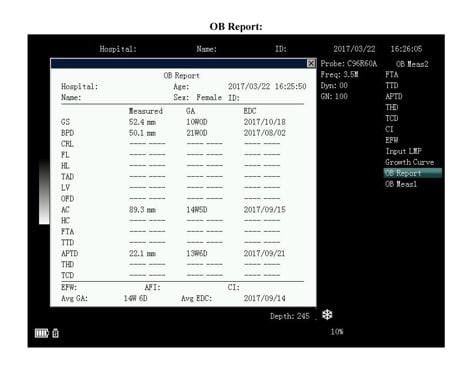

– Support for OB Report
– Support for multiple languages such as Chinese, English, Spanish, French, Portuguese, and Russian.

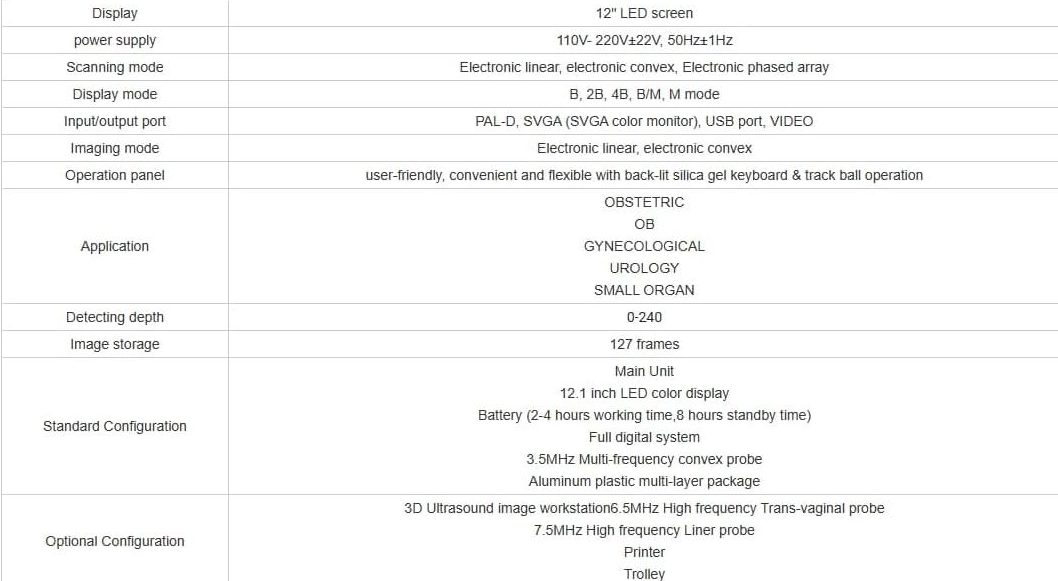

Portable Ultrasound Machine Specifications
Ultrasound Machine Probes Various Probes (80 elements):

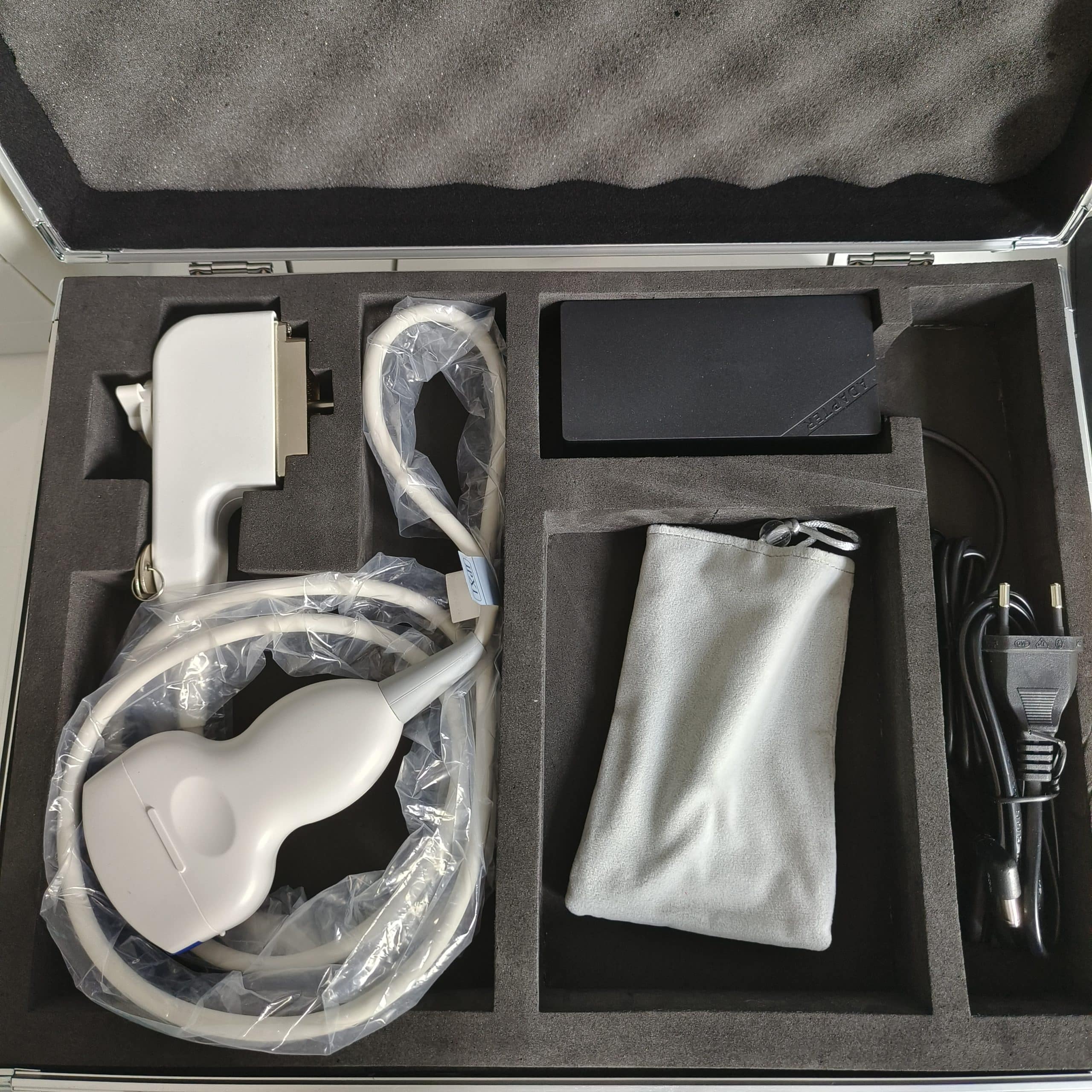

- Convex probe (2.0 – 5MHz)
- Linear probe (5.5 – 9.0MHz)
- Trans-vaginal probe (5.0 – 8.5MHz)
- Micro-convex probe (4.0 – 7.0MHz)
Convex probe
Frequency: 2.0MHz,2.5MHz3.5MHz4.0MHz5MHzDepth: 16 level [126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm
Linear probe
Frequency: 5.5MHz6.5MHz7.0MHz7.5MHz9.0MHzDepth: 16 level[35,42,49,62,69,76,83,90,97,104mm]
Trans-vaginal probe
Frequency:5.0MHz,5.5MHz,6.5MHz75MHz8.5MHzDepth: 16 level[62,69,76,83,90,97,104,111,125,139mm]
Micro-convex probe
Frequency: 4.0MHz,4.5MHz,5.0MHz6.5MHz7.0MHzDepth: 16 level[62.69.83.97,111.125.139,152,166.180mm]
