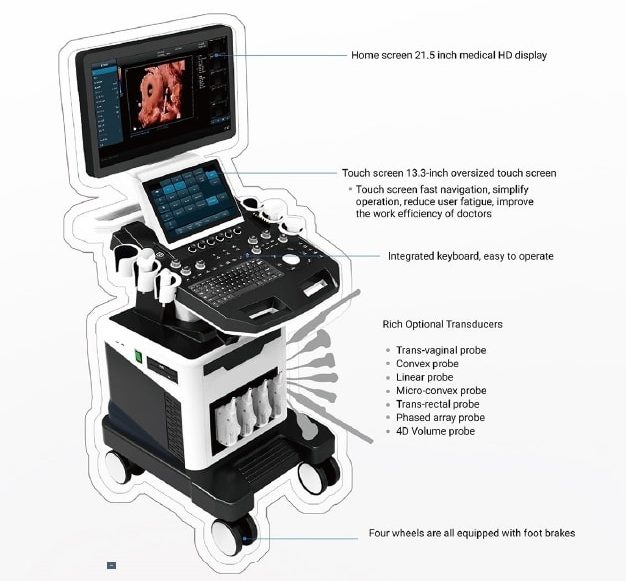

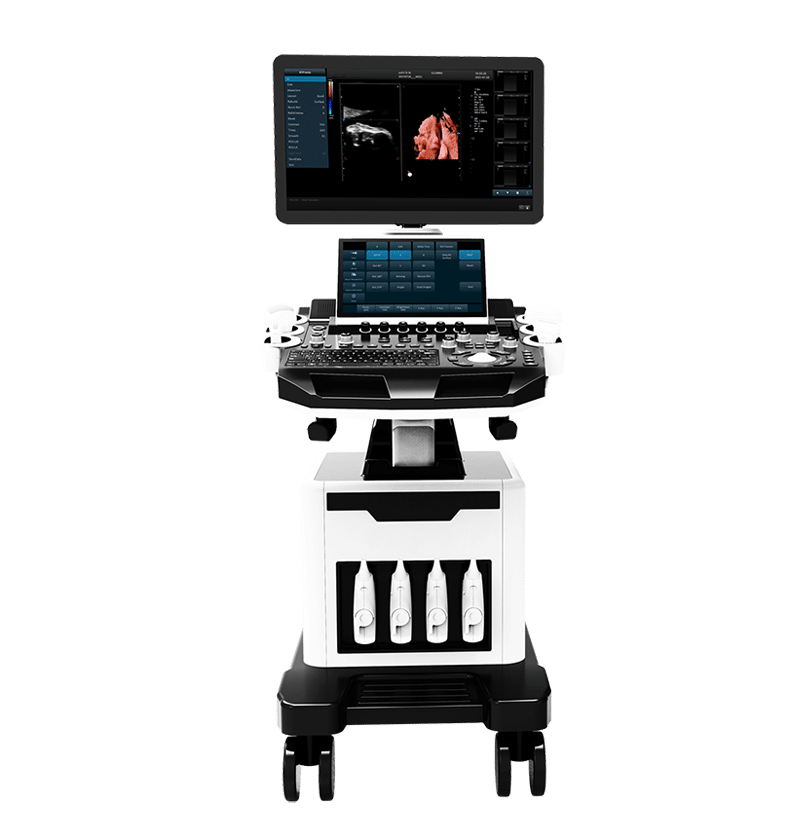

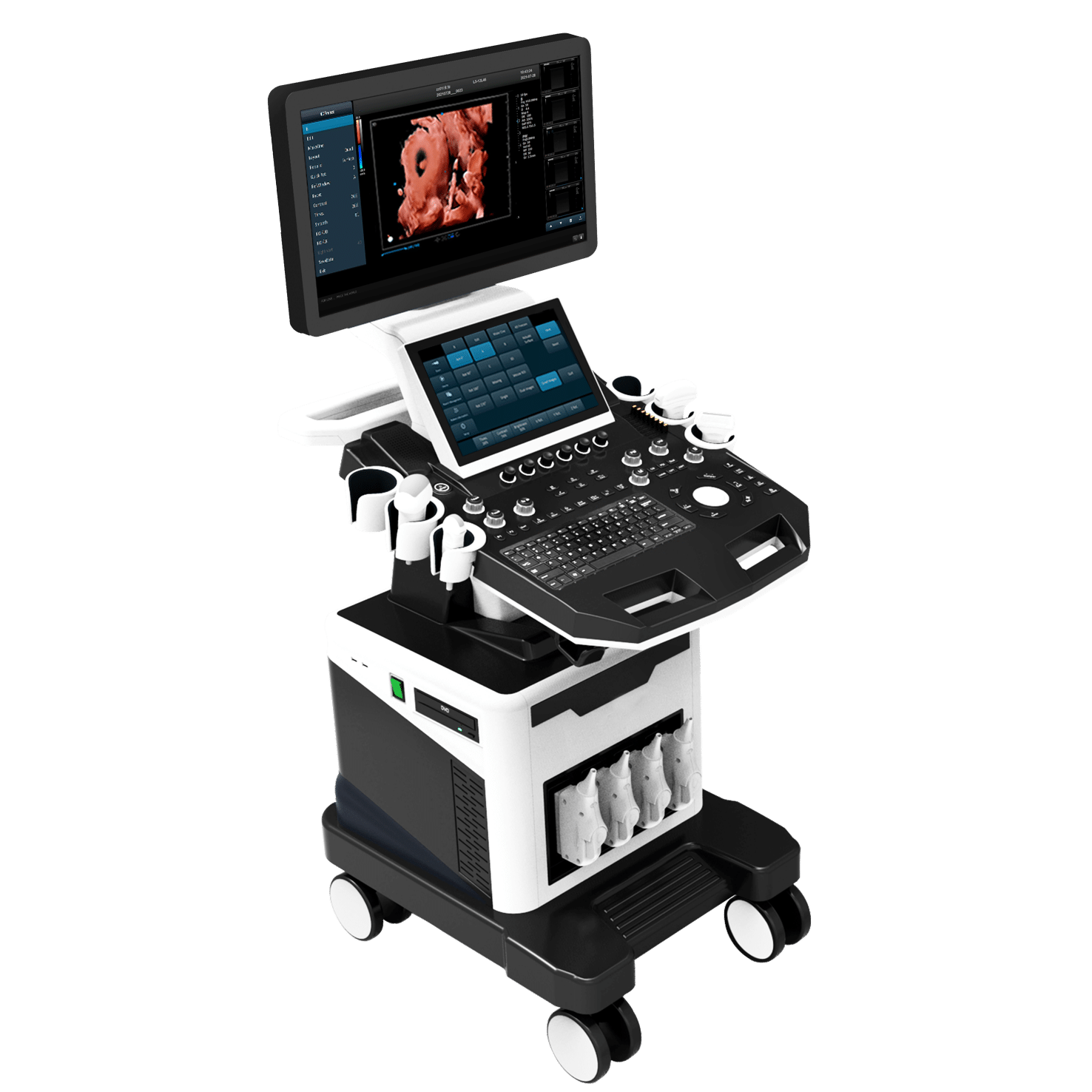

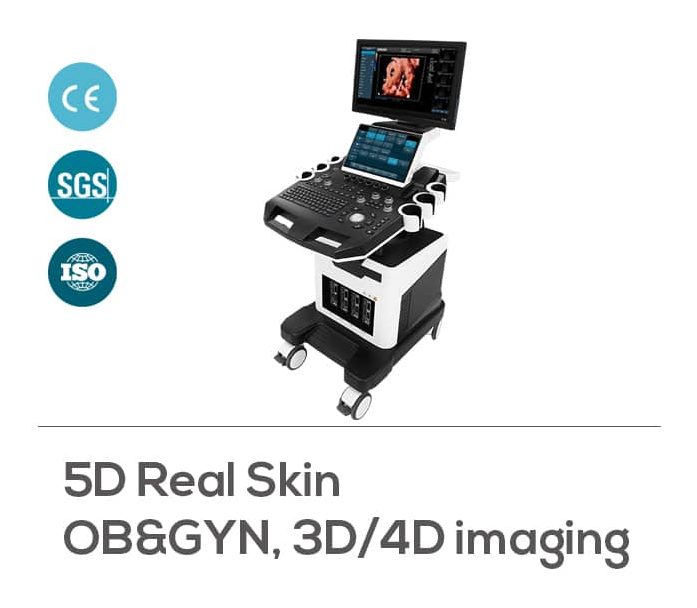

3D/4D/5D Trolley Color Doppler Ultrasound Machine ST-50

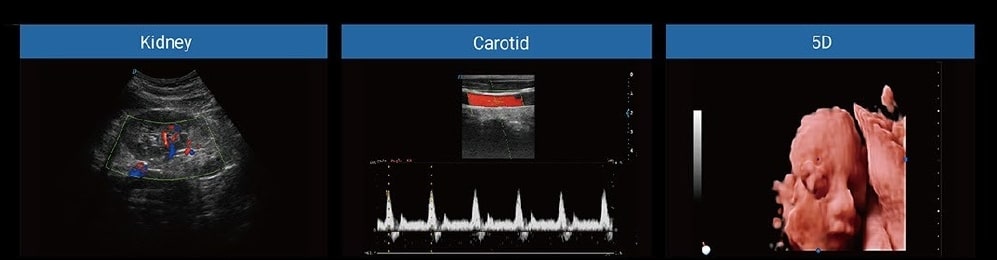

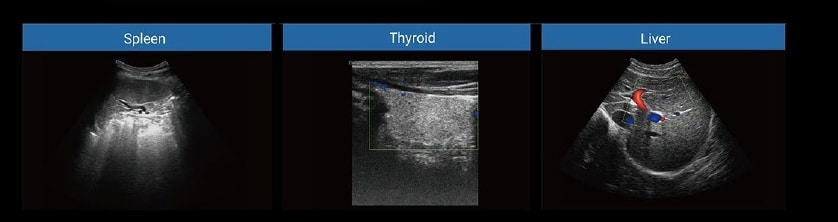

Main clinical Application: General Imaging,Obstetrics & Gynecology, Musculoskeletal, Urology, Abdomen, Andrology, Anesthesia, Blood Vessels, Cardiology,etc.
- 4D real skin rendering function
- Windows embedded ultrasonic runningplatform
- With automatic tracing, trapezoidal imaging.one key automatic optimization and otherfunctions
- Automatic spectrum measurement
- The obstetric model can modify a varietyof measurement combinations

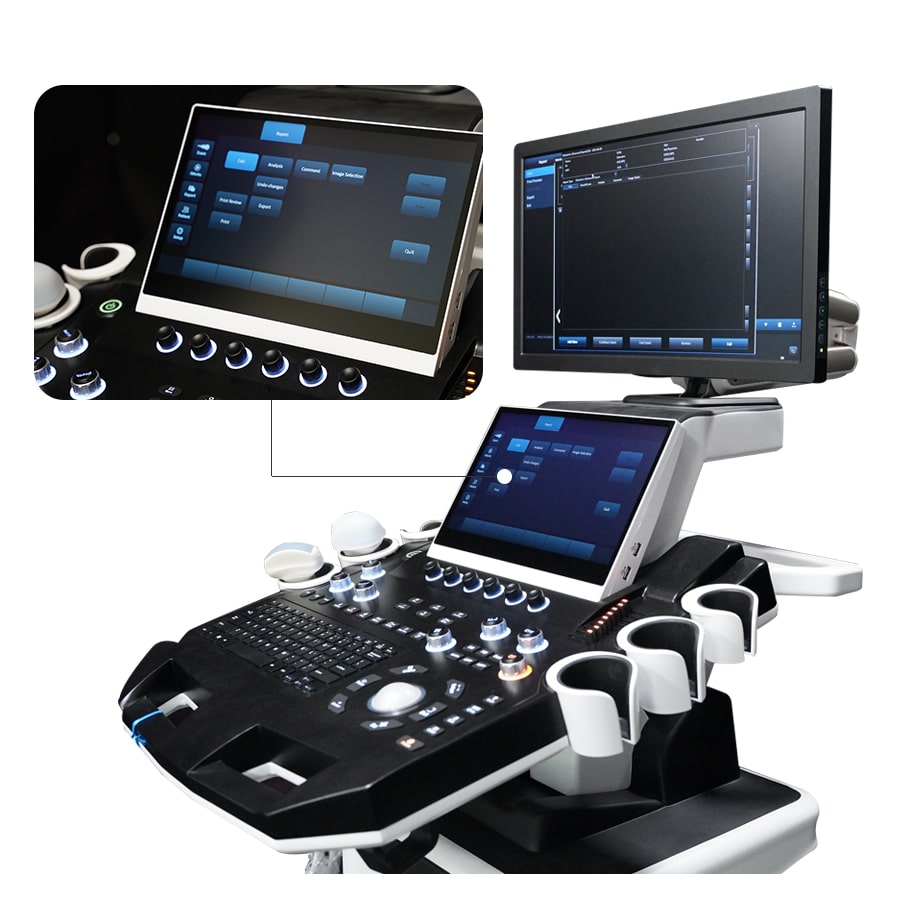

- Take ergonomic design into consideration
- DICOM function, can be directly connectedwith the hospital PACS system
- Hard disk dynamic and static image storage,real-time sharing

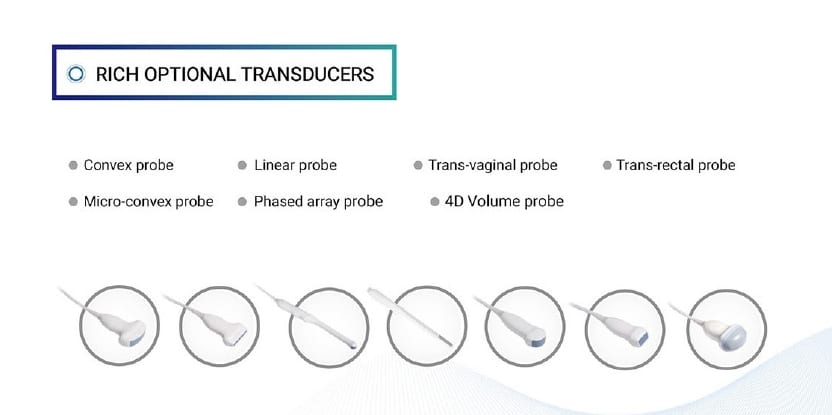

Probes 128 ELEMENT
- Convex probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz,(Depth: 20-317MM)
- Linear probe:6.0MHz/7.5MHz/8.5MHz/10.0MHz/H10.0MHz,(Depth:20-110MM)
- Transvaginal probe:4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz, (Depth:30-111MM)
- Phased array probe:2.5MHz/3.0MHz/3.5MHz/4.0MHz/H3.0MHz/H4.0MHz,(Depth:30-371MM)
- Volume probe:2.0MHz/3.0MHz/4.5MHz/6.0MHz/H5.0MHz,(Depth:30-237MM)
- Micro-convex probe(R11):4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz,(Depth:30-111MM)
- Micro-convex probe(R20):2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz,(Depth:30-23.7MM)
The above probes have harmonic frequencies
Each probe has a selection of specialist and organ modes for quick access for diagnostic
