The 3-Part Auto Hematology Analyzer CBC Machine Smaller and Lighter Design

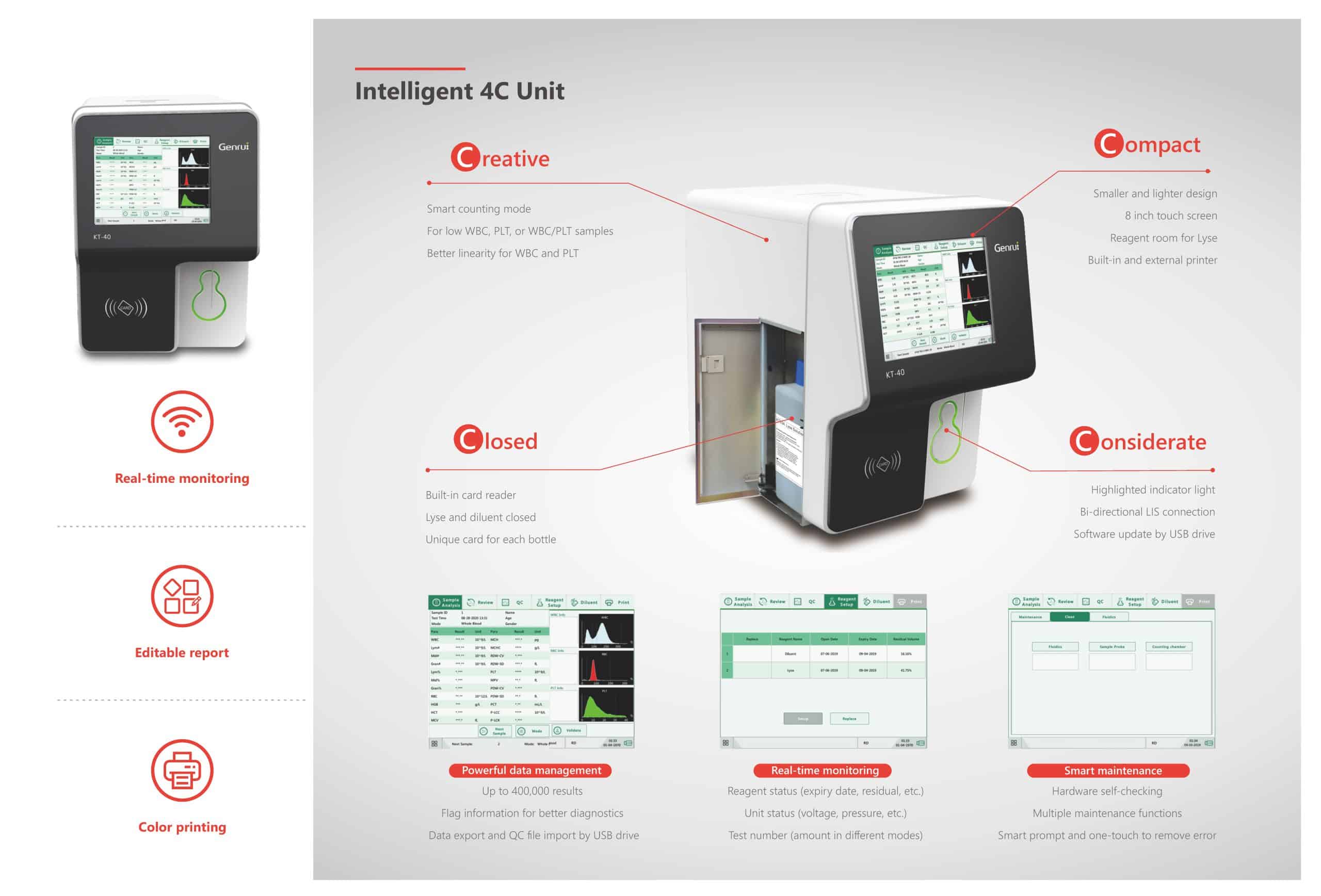

Intelligent 4C Unit
- Creative
Smart counting mode
For low WBC PLT or WBC/PLT samples
Better linearity for WBC and PLT - Compact
Smaller and lighter design
8-inch touch screen
Reagent room for Lyse
Built-in and external printer - Closed
Built-in card reader
Lyse and diluent closed
Unique card for each bottle - Considerate
Highlighted indicator light
Bi-directional LIS connection
Software update by USB drive - Powerful data management
Up to 400,000 results
Flag information for better diagnosticsData export and QC file import by USB drive - Real-time monitoring
Reagent status expiry date, residual, etc.)
Unit status (voltage, pressure, etc )
Test number (amount in different modes) - Smart maintenance
Hardware self-checking
Multiple maintenance functions
Smart prompt and one-touch to remove error

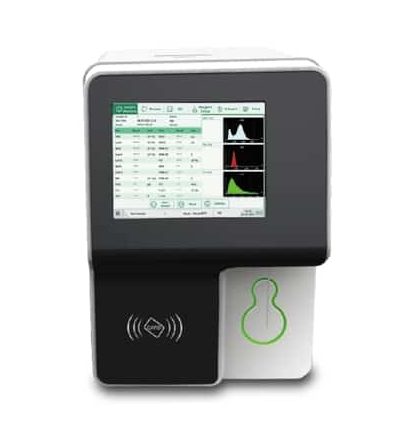

SoyMed intelligent MS-40 3-part Hematology Analyzer
Specifications:
| Main Technical Specifications | Methodology Electrical resistance for counting, hemoglobin cyanide method, and SFT method for hemoglobin |
| Parameter | 3-part differentiation of WBC, 24 parameters, and 3 color histograms (WBC, RBC, PLT) |
| Work mode | Single Channel + unique Hemoglobin test system |
| Sample volume | 9.0 μL for Venous and capillary mode. 20 μL for prediluted mode |
| Throughput | More than 40 samples per hour |
| Storage | Up to 400,000 sample results including histograms(WBC, RBC, PLT) can be stored, convenient for inquiry and management of historical data |
| Operation language | English, Spanish, Italian, French Russian, Portuguese, Ukrainian, etc. |
| QC control | 3-levelQC,L-JQC,X-B QC |
| Reference Value Setting | Male, Female, Children, Neonate |
| Input /output | 8-inch touch screen Internal printer, support external printer |
| Auto-print, manual print | |
| Working Environment | 10-40°C,10%-90%,70kPa-106.0kPa |
| Power supply | 100-240 AC,160VA,50/60Hz |
| Dimension | 43 CM(L)*28CM(W)*40 CM(H) |
| Weight | 17.5 KG |
Parameters:
24 parameters including: WBCNeu#,Lym#Mid#,Neu%,Lym%,Mid%,RBC，HGB,HCT,MCV MCH,MCHCRDW-SDRDW-CVPLTMPVPDW-SD,PDW-CVPCTPLCR,P-LCCNLR,PLR
